MULTIPLE FORMING HEADS
TRANSFER LINE FOR COMPLETE MACHINING OPERATIONS
STEERING TUBE FOR MOTORCYCLE

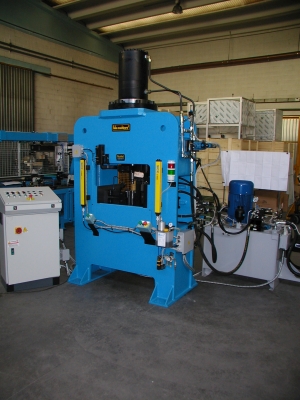

Hydraulic press to perform the press operation as per your samples.
Vertical press with hydraulic cylinder D. 250 (approx) and with another cylinder to lock the tube. Double dies assembled on a slide.
The tube is inserted in the working position, at the pushing of start button the tube is strong clamped.
The vertical cylinder moves slowly down and one dies enters into one extremity of the tube, the same dies goes back. At this step, the slide of the dies moves in a way that the second dies presents itself over the already pre-machined end of tube.
The vertical cylinder pushes the dies (second) inside the end and refinishes the extremity.
The vertical cylinder recalls back the dies and simultaneously, going back, the dies return to the initial position. The tube is getting free.
At this step the tube is unloaded and it is loaded on the other extremity (when both ends are machined by the same tool).
The dies/tools are interchangeable.
The machine includes one set of dies for each station.
