FRAMES PIPE PREPARATION
AUTOMATIC TUBE MACHINING (MANUAL LOADING)

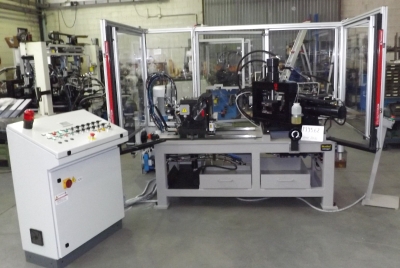

Automatic machine to perform the machining of ends of the down tube. (possible any other tube also)
Hydraulic unit to notch/mitre simultaneously the two extremities of DT tubes (from inside) and eventual ovalisation of the two extremities. The two units are adjustable in position and length of tube, to permit any cutting of angle and any type of notching (from inside). Possible to do three/four cuts:
- a) head tube side
- b) BB side
- c) BB/seat tube side
Possibility to ovalize/smash/calibrate the two ends.
Manual tube loading and unloading.
Complete with one set of tooling.
Output: 1 tube with 3-4 cuts – 8/10 seconds excluding load/unloading
