MERCURY A

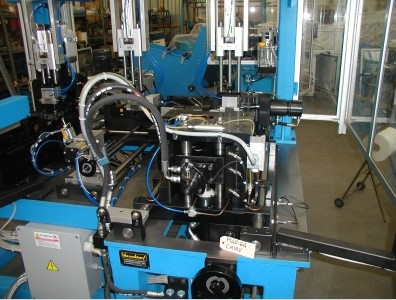

AUTOMATIC SEAT TUBE COMPLETE MACHINING

This automatic machine is designed for performing all different seat tube machining. Composed from an automatic loader/feeder with a big capacity, it is suitable for the notching process of any industries tubes. The max standard diameter is 50mm, wall 2,5 m. Upon request, bigger diameters and walls are available.

  • automatic tube loading.
  • positioning of the tube.
  • one extremity reducing (seat position).
  • two hydraulic units: one to slot the reduced extremity and the second one to notch/miter the b/b extremity (from inside).
  • automatic tube unloading.

The machining process is transfer hands based, moving simultaneously to carry the tube from one station to other. The output capacity is 8 pieces per minute.
